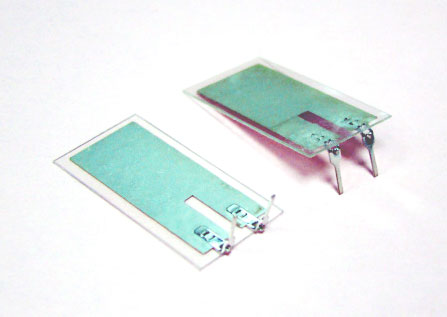

Piezoelectric Film Sensors
Dimensions | Download | Back | Home
Pro-Wave presents a series of mechno-electrical sensors and detectors produced by advanced piezoelectric polymer film technology. The polymer film of polyvinylidene fluoride (PVF2) exhibits a conspicuous piezoelectric effect and also has high compliance comparing with other piezoelectric crystals or ceramic materials. Because of its superior piezoelectric strain constant (g value), 10-20 times larger than piezoelectric ceramic, it is an ideal sensing material for converting mechanical to electrical energy.
Besides the standard products shown on this catalogue, we are also developing a series of sensing devices by using this particular piezoelectric thin film material. Please contact with us for your special needs.

Features Applications
  • Self-generated voltage, non-contact, rustless, free of sparking
  • Low mechanical and acoustic impedance
  • High resistance to moisture
  • Pliant, flexible, tough and lightweight
  • Vibration sensors and motion detectors
  • Low weight accelerometers
  • Pressure or force, coin and impact sensors
  • Keyboards, keypads and touch panels
  • Microphones and headset speakers

Specification
Model Number FS-2513P Unit
Type Lead Pins
Voltage sensitivity at fr 70 mV/ms -2
Transverse sensitivity 10 mV/ms -2
Resonant frequency (fr) 80 ± 10 Hz
Capacitance 660 ± 30% pF @ 1KHz
Operation temperature -20 ~ +60 ° C

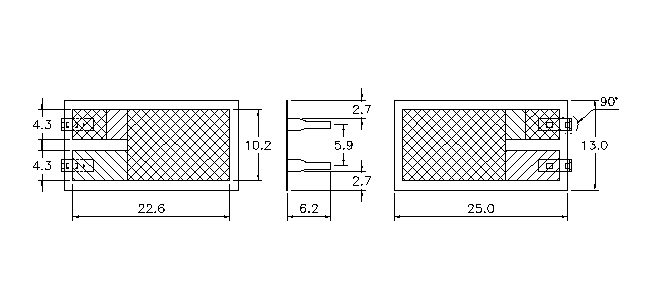

Dimensions
