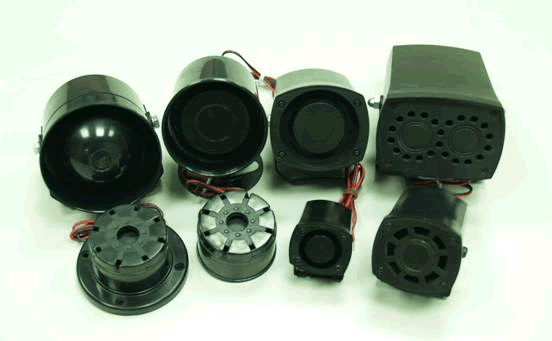

| Piezoelectric Ceramic Sirens |
| Model Number |
Description |
Sound Output (dB/m) |
Operating Voltage (Volts) |
Current Drain (mA) |
Size (mm) |
| SQ-6038B |
Hi-output |
110 |
DC7-15 V |
300 |
62Dia. x 40Depth |
| SQ-6038H |
Hi-output |
110 |
DC7-15 V |
300 |
62Dia. x 40Depth |
| SQ-6085B |
Hi-output |
115 |
DC7-15 V |
350 |
60W x 55H x 85Depth |
| SQ-7608B |
Hi-output |
117 |
DC7-15 V |
500 |
76W x 68H x 107Depth |
| SQ-8075B |
Hi-output |
117 |
DC7-15 V |
500 |
80Dia. x 75Depth |
| SQ-8543H |
Hi-output |
110 |
DC7-15 V |
300 |
85Dia. x 42Depth |
| SQ-9014B |
Dual |
122 |
DC7-15 V |
1000 |
95W x 66H x 140Depth |
| SQ-9280B |
Hi-output |
120 |
DC7-15 V |
500 |
92Dia. x 80Depth |
| SQ-4558B |
Mini |
105 |
DC7-15 V |
200 |
45W x 40H x 58Depth |
|
