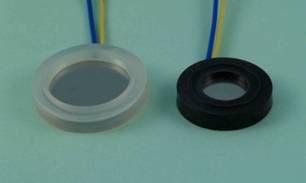

| Ultrasonic Atomoizing Transducers |
 |
Applications |
- Humidification in refrigerated food displays and storage, living environments, and air conditioning plants.
- Inhalation and disinfecting equipment
- Humidification in industrial process control for lubrication, coating and etc.
|
| |

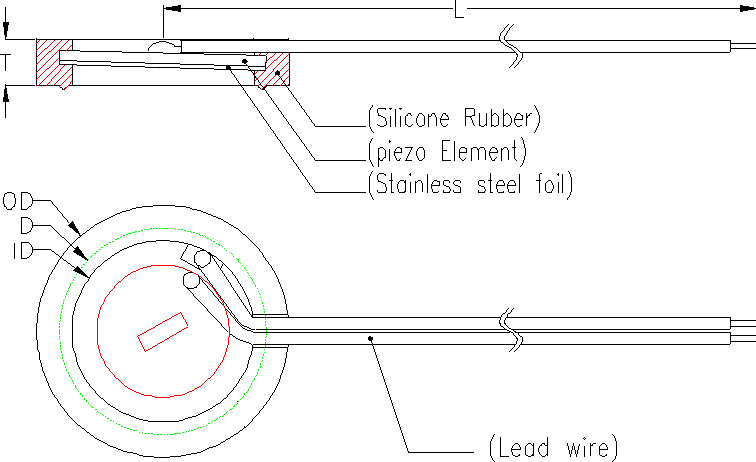

| Dimensions |
 |
| Specification |
| Model Number |
M165D20 |
M165D25 |
| Resonant
Frequency
(MHz) |
1.65 |
1.65 |
| Resonant
Impedance
(Ohm) |
<2.0 |
<2.0 |
| Capacitance
at 1KHz
(pF) |
2,000 |
2,000 |
| Dissipation
Factor
at 1KHz |
<0.5% |
<0.5% |
| Operation
Duration
(Hours) |
>6,000 |
>6,000 |
| Atomizing
Quantity
(cc/Hr) |
300 |
400 |
| Input
Power
(Watt) |
20 |
30 |
| Operating
Temperature
(°C) |
0 to 45 °C |
0 to 45 °C |
| Dimensions |
L |
110 |
110 |
| T |
5 |
5.5 |
| OD |
25 |
30.5 |
| D |
20 |
25 |
| ID |
17.4 |
22 |
|
