| Air Ultrasonic Ceramic Transducers | 400PT160 |
| Acoustic Performance |

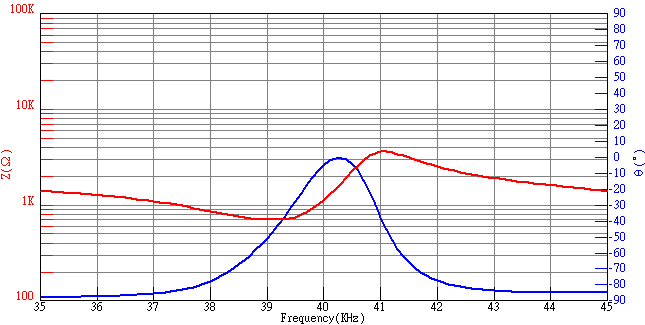

| Impedance/Phase Angle vs. Frequency: Tested under 1Vrms Oscillation Level | |||
| 400PT160 Impedance |  |
400PT160 Phase Angle |  |
 |
|||

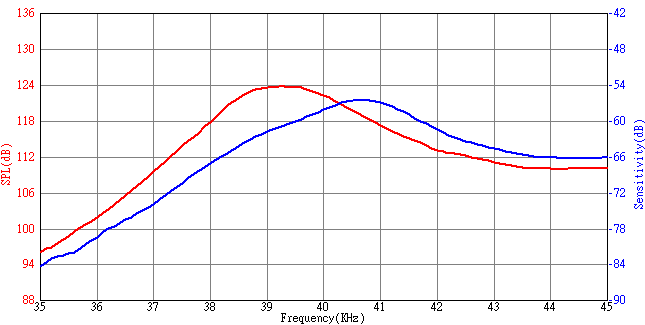

| Sensitivity/Sound Pressure Level: Tested under 10Vrms @30cm | |||
 |
|||

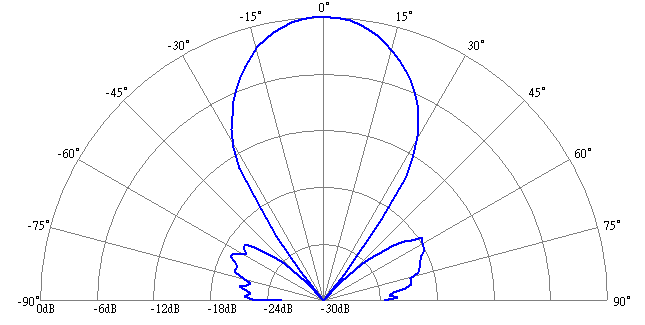

| Beam Angle: Tested at 40.0KHz | |||
 |
|||
