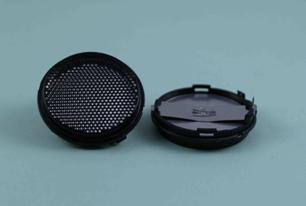

| Electrostatic Ultrasonic Transducers | 500ES430 |
 |
Features |
| Compact and light weight High sensitivity and sound pressure level Excellent temperature and humidity durability Low cost | |
| Applications | |
| Remote control devices Robotics Intrusion Alarms Energy saving equipments |
| Specification | ||
| 500ES430 | Transceiver | |
| Center Frequency | 50.0±1.0KHz | |
| Transmitting Sound Pressure Level at 50.0KHz; 0dB re 20 μPa per 300Vac pk-pk, 200Vdc bias at 50 cm |
116 dB min. | |
| Receiving Sensitivity at 50.0KHz, 200Vdc bias, 0dB = 1 volt/Pa (0dB = 1 volt/ μbar) |
-43 dB min. (-63 dB min.) | |
| Capacitance at 1KHz ± 20% | 400 - 500 pF | |
| Suggested DC Bias Voltage | 200V | |
| Suggested AC Driving Voltage | 300Vpk-pk | |
| Maximum Combined Voltage | 400V | |
| Total Beam Angle -6dB | 13° typical | |
| Operation Temperature | 0 to 60 °C | |
| Standard Finish | Foil (Diaphragm) | Aluminum |
| Housing | Black Painted Steel | |
All specification taken typical at 25°C;
stainless steel housing and gold plated foil can be supplied upon request.
