| Electrostatic Ultrasonic Transducers | 500ES430 |
| Acoustic Performance |

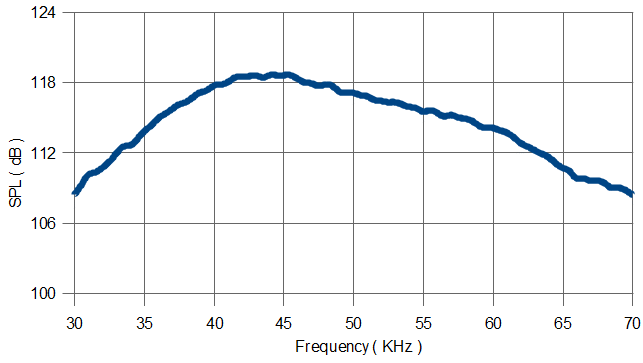

| Sensitivity/Sound Pressure Level: Tested under 300Vac pk-pk, 200Vdc bias @50 cm |
 |

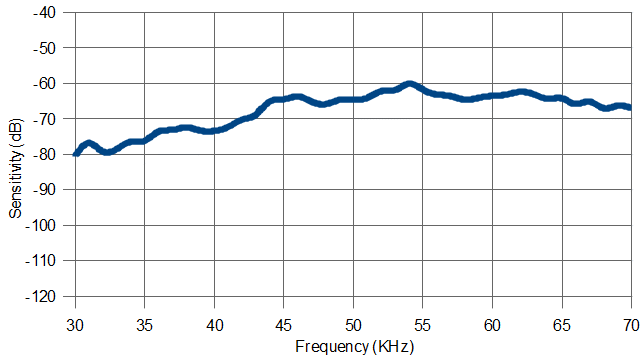

| Sensitivity: Tested under 200Vdc bias |
 |

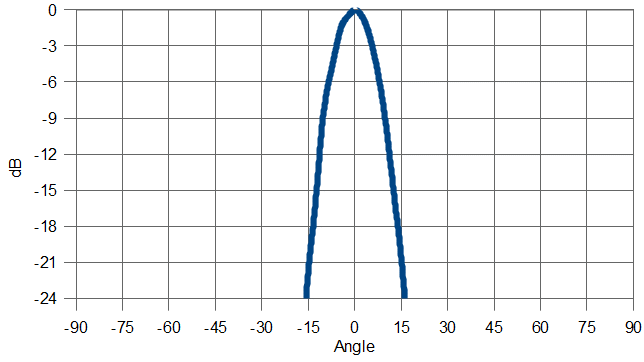

| Directivity at 50.0KHz |
 |
