080SR365 Specification

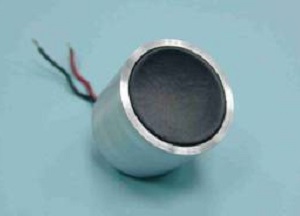

Air Ultrasonic Transducer - Matching Layer Type

080SR365

Specification | Acoustic Performance | Test Circuit | Dimensions | Download | Back | Home

	Features
	Waterproof and dust-proof Meet NEMA 4X, 6P and IP67 requirements Excellent temperature and humidity durability High sound output/sensitivity
	Applications
	Echo ranging Robotics Proximity sensing Automation

Specification
080SR365	Transceiver
Center Frequency	80.0±5.0 KHz
Bandwidth Echo Sensitivity -6dB	4.5 KHz
Echo Sensitivity 0dB re 20Vp-p @ 50 cm , 40 Bursts	-57 dB min. 28.25 mVp-p min.
Dead Zone 10 Bursts	35 cm
Capacitance at 1KHz ±20%	2800 pF
Max.Driving Voltage Pulse 2% duty cycle tone burst	700 Vp-p
Total Beam Angle -3dB/-6dB	8.0°/11.0° typical
Matching Window	Silicone Rubber
Operation Temperature	-20℃ to 70℃
Storage Temperature	-30℃ to 80℃

All specification taken typical at 25℃; closer frequency tolerance can be supplied upon request.
Low ringing model can be arranged upon request

Model available
1. 080SR365	Aluminum Housing
