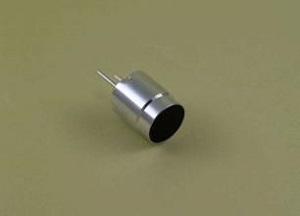

Air Ultrasonic Transducer - Matching Layer Type

235SR130

Specification | Acoustic Performance | Test Circuit | Dimensions | Download | Back | Home

	Features
	Waterproof and dust-proof Meet NEMA 4X, 6P and IP67 requirements Excellent temperature and humidity durability High sound output/sensitivity
	Applications
	Echo ranging Robotics Proximity sensing Automation

Specification
235SR130	Transceiver
Center Frequency	235.0±10.0 KHz
Bandwidth Echo Sensitivity -6dB	10.0 KHz
Echo Sensitivity 0dB re 20Vp-p sine wave, 40 bursts @ 25cm	-61 dB min. 18 mVp-p min.
Dead Zone 10 Bursts	15 cm
Capacitance at 1KHz ±20%	540 pF
Max.Driving Voltage Pulse 10% duty cycle tone burst	80 Vp-p
Total Beam Angle -3dB/-6dB	7.5°/10.5° typical
Matching Window	Silicone Rubber
Operation Temperature	-20℃ to 70℃
Storage Temperature	-30℃ to 80℃

All specification taken typical at 25℃; closer frequency tolerance can be supplied upon request.
Low ringing model can be arranged upon request

Model available
1. 235SR130	Aluminum Housing
